TURNTABLES


    NEW!
    PDX-d3 World's First Digitally Controlled Turntable
    • stick controller: gives instant joystick adjustment of turntable speed up to +/-50%
    • pitch bend (1%,2%,3% and 6%) with the stick control, it is possible to adjust speed up or down without touching the record
    • pitch fader span: selectable pitch fader span between +/-10%,+/-8%, or +/-3%. The pitch speed is indicated on the digital display.
    • unique reverse mode features: New remix possibilities with reverse playing of discs
    • all other functions (speed up and down, pitch blend control) apply to reverse play
    • servo switch off: Gives natural "wind down" effect by disconnecting the servo drive.
    • full time quartz lock synthesizer: Complete accuracy of playing speed/time keeping.
    click for larger image (48K)

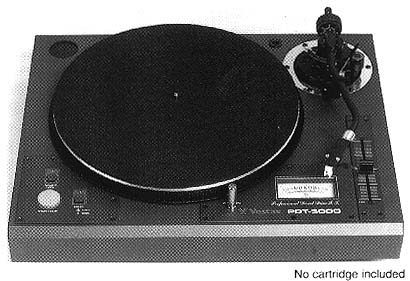

    PDT-5000 Best Selling "DJ TURNTABLE"
    • Turntable packed with high-end features and extremely high-powered torque motor.
    • Acoustic feedback is minimized by original floating arm system.
    • +/-10% Detachable pitch control fader permits easy replacement.
    • Turntable speed can be adjusted by illuminated VU mater.
    SPECIFICATIONS: Turntable section: Direct Drive Quartz / Starting up time;0.5sec(331/2rpm) 70 degrees / Starting Torque:1.6kg-cm / Braking system:Electronic brake / Ramble(S/N RATIO):78dB(IEC 98A WTD) / Speed:33 1/2rpm, 45 rpm / Pitch:=/-10%(Detachable 10 0mm Fader) / WOW &Flutter:0.03% W.R.M.S / Arm section : Static balance S shaped arm Floating suspend system (almost zero acounstic F.B.) / Effective Length:230mm+/-1mm / Offset angle:22 degrees / Over Hang:15mm / Tracking error:=2degrees 32'~0 degrees 32' / Cueing Device:Oil damping type / Antiskating: Adjustment range 0~7.0g / Stylus pressure:Adjustment range0~7.0g / Arm Height:Adjustment range 43~49mm / Total:Detachable minilight DC 12volt 100mA / Pitch meter:Analog metmer with Indicator / Speed lock:qu artz lock / Remote:Momentary start(MINI JACK) / Dimensions: (W)450mm X (H)136mm X (D)370mm / Weight:11kg / Power:AC100V,120V,230V

    click for larger image (40K)

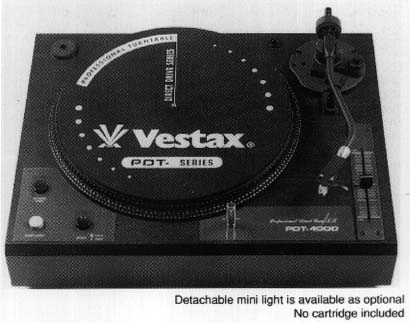

    PDT-4000 High Performance-Low Cost Turntable

    PDT-4000 has the same basic facilities as PDT-5000. It is high quality turntable providing high torque by AC servo motor, +/-10% pitch control etc. Simplified but with complete features required by DJ's.

    SPECIFICATIONS: Turntable section: Direct Drive Quartz / Starting up time;0.5sec(331/2rpm) 70 degrees / Starting Torque:1.6kg-cm / Braking system:Electronic brake / Ramble(S/N RATIO):78dB(IEC 98A WTD) / Speed:33 1/2rpm, 45 rpm / Pitch:=/-10%(Detachable 10 0mm Fader) / WOW &Flutter:0.03% W.R.M.S / Arm section : Static balance S shaped arm Vibration Sync suspend system / Effective Length:230mm+/-1mm / Offset angle:22 degrees / Over Hang:15mm / Tracking error:=2degrees 32'~0 degrees 32' / Antiskating: Adjustm ent range 0~7.0g / Stylus pressure:Adjustment range0~7.0g / Arm Height:Adjustment range 43~49mm / Total:Detachable minilight DC 12volt 100mA / Pitch meter:Analog metmer with Indicator / Speed lock:quartz lock / Remote:Momentary start(MINI JACK) / Dimensio ns: (W)450mm X (H)136mm X (D)370mm / Weight:11kg / Power:AC100V,120V,230V


    click for larger image (32K)
